Heat Resistant Conveyor Belt
In general , conveyor belt is easily damaged by the hot materials , and developing cracks or abrasion through stiffening or softening of the rubber cover and separation between plies or between rubber and ply . To prevent possible damages , we have developed heat resistant conveyor belt.
key word:
Category:
Conveyor Belt Series
Product details
In general , conveyor belt is easily damaged by the hot materials , and developing cracks or abrasion through stiffening or softening of the rubber cover and separation between plies or between rubber and ply . To prevent possible damages , we have developed heat resistant conveyor belt.

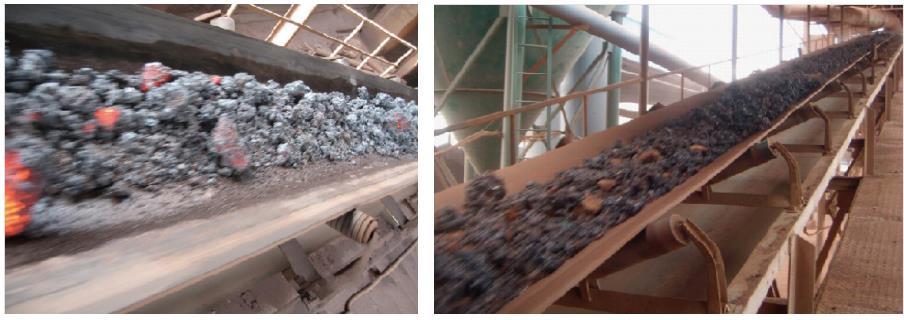

The belt is highly resistant to hot materials such as cement , steel or sand and can convey materials with high temperature from 60 to 200 C with peak temperature up to 250 C .
Advantage
Excellent heat resistant and abrasion resistant rubber cover compound
Protect conveyor belt surface from cracking and hardening that caused by heat
Special heat-treatment which minimize the carcass shrinkage caused by heat aging
Application
Cement plants
Iron&Steel Industry
Fertilizer factory
Heating stations and power Stations
Heat Resistant Conveyor Belt
Belt Selection for Your Reference
|
Type |
Temperature of belt surface |
Average temperature of transported material |
Application |
|
HR120 |
120 |
120-140 |
Coke, sinter, and low-temperature heat resistant |
|
HR150 |
150 |
140-160 |
Steel, casting and sinter |
|
HR175 |
175 |
170-180 |
Cement clinker, residues and dry powder |
|
HR200 |
200 |
190-210 |
Materials’ temperature exceed 200℃ |
|
HOR |
120 |
120-140 |
Asphalt and other oily material |
