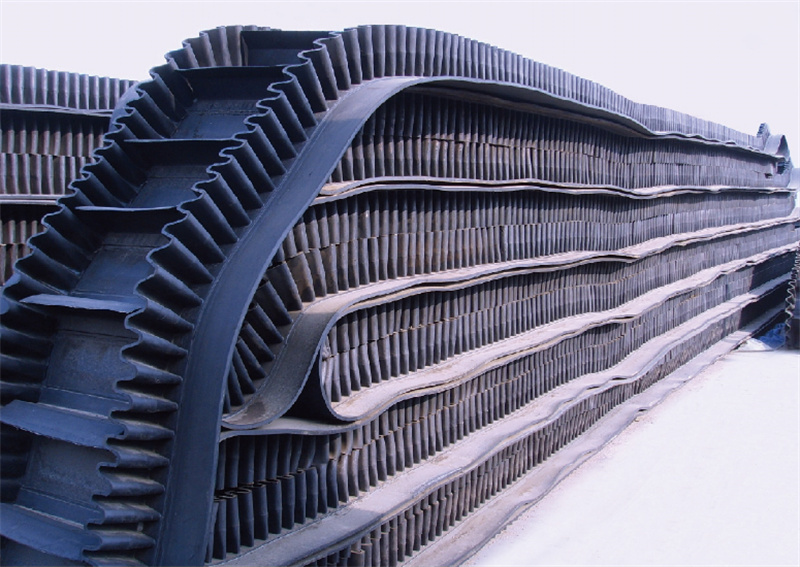

Corrugated Sidewall Conveyor Belt

Sidewall conveyor belt is designed for the transportation of bulk materials at steep or vertical inclined angles and it can cover alapplications with inclines from 0 to 90 degrees. lt is the most technical and economical solution for steep or vertical incline angle material conveying, saving ground space eftectively at the same time. Our special designed base belt with transverse reinforcement can solve the problem of belt collanse

key word:

Category:

Conveyor Belt Series

Message

Product details

Construction:

Base Belt: Multi-ply (EP/NN/CC) Fabric Type or Steel Cord Type

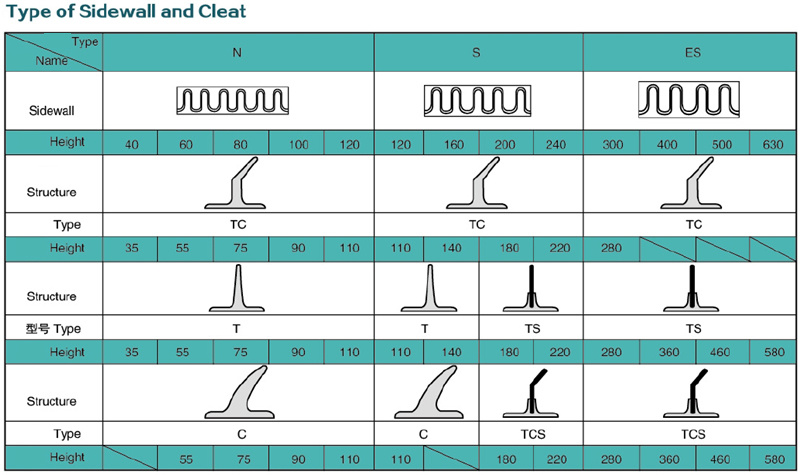

Sidewall: N, S.and ES Type

Cleat: T, C,TC, TS and TCS Type

Transverse Reinforcement: According to clients’requirement

Advantage:

Less space requirement

Low maintenance cost

Large capacity

Allows material conveying at 0° - 90°

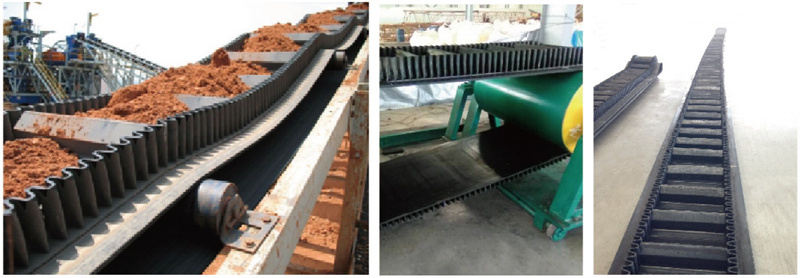

Application:

Steel Plant

Port

Sand, Grave

Foundries

Coal, Mining

Chemical, Fertilizer. etc

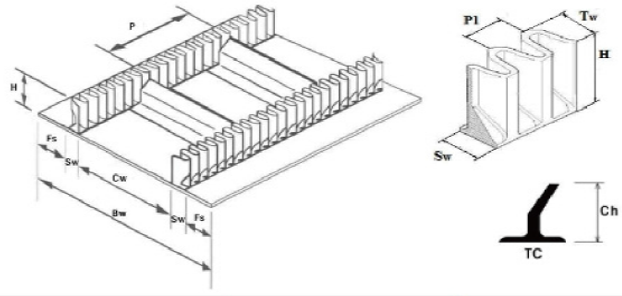

Technical Data

Base Belt Width (mm)	Sidewall Height (mm)	Cleat Height (mm)	Width of Base Sidewall (mm)	Length of Cleat (mm)	Insert (mm)
Bw	H	Ch	Sw	Cw	Fs
400	60	55	50	180	60
	80	75
	100	90
500	80	75	50	250	75
	100	90
	120	110
650	100	90	50	350	100
	120	110
	160	140	75	300
800	120	110	50	460	120
	160	140	75	410
	200	180
1000	160	140	75	550	150
	200	180
	240	220
1200	160	140	75	690	180
	200	180
	240	220
	300	280	105	630
1400	200	180	75	830	210
	240	220
	300	280	105	770
	400	360
1600	200	180	75	970	240
	240	220
	300	280	105	910
	400	360
1800	240	220	75	1110	270
	300	280	105	1050
	400	360
	500	460	125	1010
